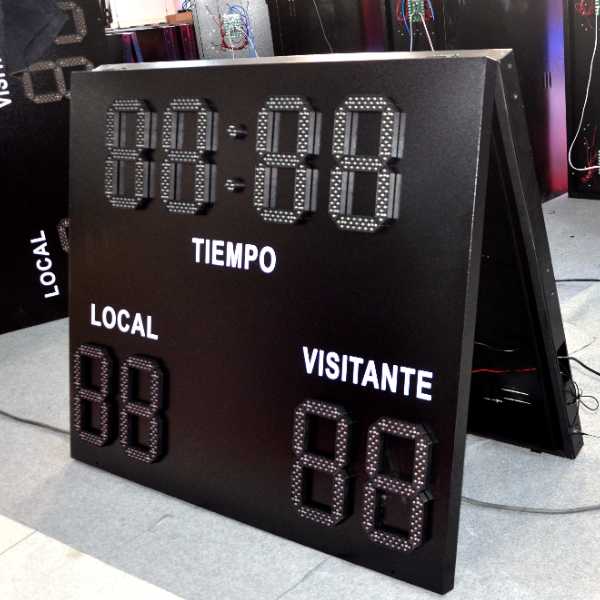

Digital Electronic Led Scoreboard
LED scoreboard for Games Baseball/ Football/ Volleyball Indoor Outdoor
Smart Brightness: Supports auto-dimming via an integrated brightness sensor for optimal visibility.
Intensity Control: Features over 8 levels of automatic intensity adjustment to suit various lighting conditions.
Remote Operation: Includes an RF remote control (Standard 6-button or LCD remote controller) for easy sideline use.
Durability Options: Available in IP53 with a lightweight aluminum alloy frame or IP65 with a heavy-duty iron cabinet.
Intensity Control: Features over 8 levels of automatic intensity adjustment to suit various lighting conditions.
Remote Operation: Includes an RF remote control (Standard 6-button or LCD remote controller) for easy sideline use.
Durability Options: Available in IP53 with a lightweight aluminum alloy frame or IP65 with a heavy-duty iron cabinet.
Specification
| Brightness Control: | Auto dimming by brightness sensor |
| Display Dimming: | Over 8 levels of automatic intensity adjustment |
| Service Access: | Front or rear open |
| Master/slave: | Single sided or double sided, master/slaves available |
| Cabinet Material: | Iron cabinet or aluminum alloy frame |
| Led Driving Mode: | Constant current |
| Color: | Red, Amber, Green, Blue, White |
| Digit Height: | 6”, 8”, 10”, 12”, 15”, 18”, 20”, 22”, 24”, 32”, 64”, 72” |
| Brightness Control | Auto dimming by brightness sensor |
| Viewing Angle | Horizontal:60°-120°,Vertical: 60°-120° or customized |
Descriptions
| Product Description |
| LED Chips parameter |
| Color | Brightness | Wave Length | Current | Operating Voltage | Viewing angel | LED Chips size | Color temperature | Luminous flux |
| RED | 4000mcd | 620-630 | 60MA | 1.9-2.4V | 60°/120° /180° | 10*20Mil | 620-630K | 2LM |
| GREEN | 10000mcd | 515-525 | 3.0-3.4V | 515-525K | 3LM | |||
| BLUE | 8000mcd | 515-525 | 2.5-3.0V | 460-470K | 3LM | |||
| YELLOW | 3500mcd | 585-590 | 1.9-2.2V | 588-595K | 1.5LM | |||
| WHITE | 12000mcd | 0 | 3.0-3.4V | 6000-7000K | 5LM |
| SERIES PARAMETERS | |
| Item | Technical Parameters |
| Color: | Red, Amber, Green, Blue, White |
| Digit Height: | 6”, 8”, 10”, 12”, 15”, 18”, 20”, 22”, 24”, 32”, 64”, 72” |
| Digit Design: | 7 segments modules are sealed with glue,reach IP67 waterproof grade,with dust shade that make leds work normally all the time. |
| Brightness Control: | Auto dimming by brightness sensor |
| Display Dimming: | Over 8 levels of automatic intensity adjustment |
| Viewing Angle: | Horizontal:60°-120°,Vertical: 60°-120° or customized |
| Service Access: | Front or rear open |
| Master/slave: | Single sided or double sided, master/slaves available |
| Cabinet Material: | Iron cabinet or aluminum alloy frame |
| Waterproof Level: | IP53 with aluminum alloy frame, IP65 with iron cabinet |
| Led Driving Mode: | Constant current |
| Power Input: | 110/220V AC,50-60HZ |
| PC Communication: | RS232/485;LAN(TCP/IP) with cables or wireless,customer can choose |
| Communication Distance: | Max.15 meters for RS232, 1200 meters for RS485 |
| Remote Control Type: | RF remote control (Normal 6 buttons or LCD remote controller) |
| Continuous Working Time: | Unlimited |
| Lifetime of Leds: | >100,000 hours |
| Installation Method: | Hanging,mounting or per custom design |
| Working Temperature: | -40℃~75℃ |
