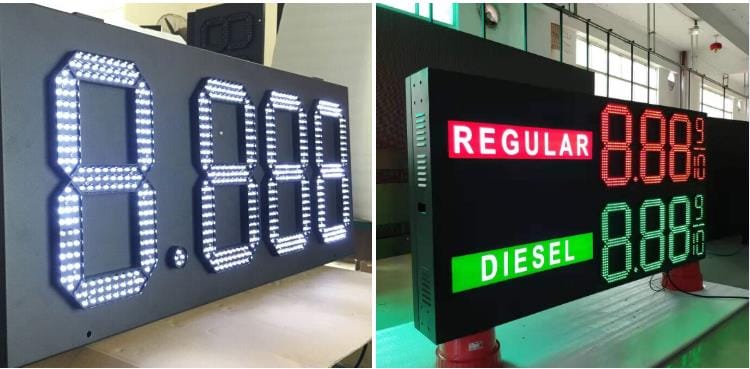

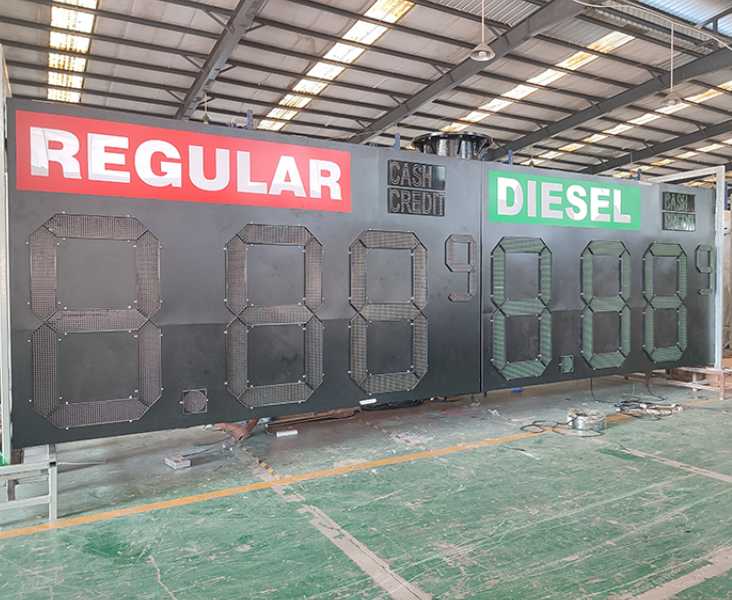

Double sided Seven Segments LED Gas Price board
Led Gas Price Sign Board for Gas Station
Visibility: LED highlight numbers, designed to easily catch eyes on the highway.
Cabinet Material: Flexible options including Iron, Aluminum, or a simple box structure.
Waterproof Rating: Features an IP65 waterproof case for robust outdoor protection.
Easy Installation: Modular design allows assembly in any format (e.g., 8.8, 8.8.8, 8.8.8.8, 8.8.8.8.8).
Durability: 7-segment modules are glue-sealed (IP67) with a dust shade for all-weather operation.
Smart Control: Supports auto-dimming via an integrated brightness sensor.
Viewing Angle: Horizontal 60°-120°, Vertical 60°-120°, or customized to your needs.
Configurations: Available in Single-sided or Double-sided, with Master/Slave options.
Enclosure Options: IP53 with aluminum alloy frame or IP65 with a heavy-duty iron cabinet.
Connectivity: Supports RS232/485, LAN (TCP/IP) via cables, or wireless communication.
Remote Operation: Includes RF remote control (Standard 6-button or LCD remote controller).
Cabinet Material: Flexible options including Iron, Aluminum, or a simple box structure.
Waterproof Rating: Features an IP65 waterproof case for robust outdoor protection.
Easy Installation: Modular design allows assembly in any format (e.g., 8.8, 8.8.8, 8.8.8.8, 8.8.8.8.8).
Durability: 7-segment modules are glue-sealed (IP67) with a dust shade for all-weather operation.
Smart Control: Supports auto-dimming via an integrated brightness sensor.
Viewing Angle: Horizontal 60°-120°, Vertical 60°-120°, or customized to your needs.
Configurations: Available in Single-sided or Double-sided, with Master/Slave options.
Enclosure Options: IP53 with aluminum alloy frame or IP65 with a heavy-duty iron cabinet.
Connectivity: Supports RS232/485, LAN (TCP/IP) via cables, or wireless communication.
Remote Operation: Includes RF remote control (Standard 6-button or LCD remote controller).
Specification
| Color | Red, Green, Blue, White |

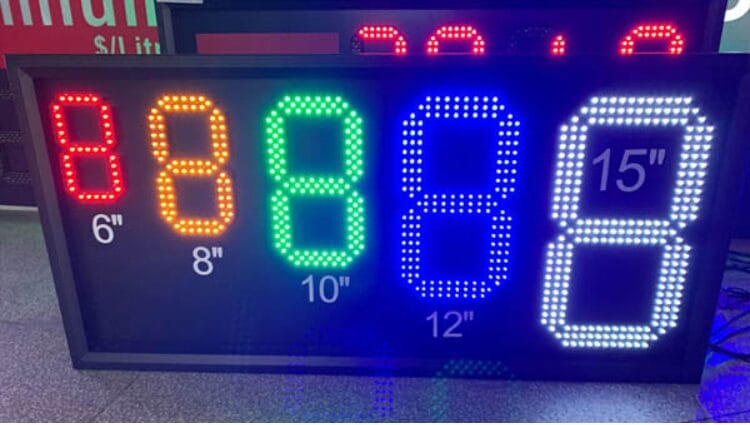

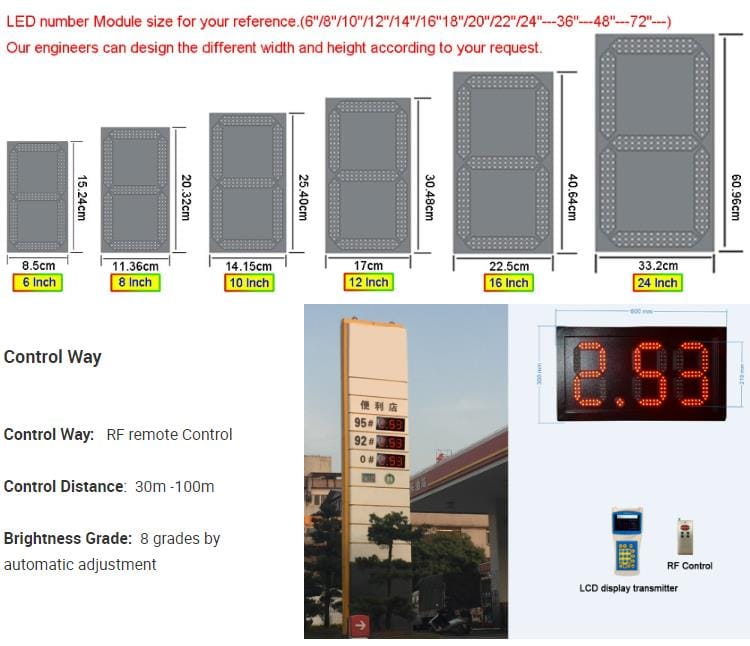

| Digit Height: | 6”, 8”, 10”, 12”, 15”, 18”, 20”, 22”, 24”, 32”, 64”, 72” |
| Brightness Control: | Auto dimming by brightness sensor |
| Waterproof Level: | IP53 with aluminum alloy frame, IP65 with iron cabinet |
| Communication Distance: | Max.15 meters for RS232, 1200 meters for RS485 |

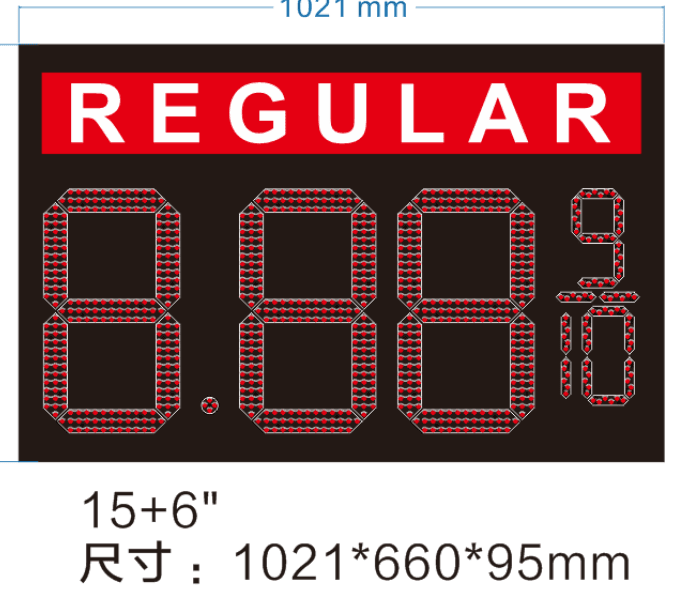

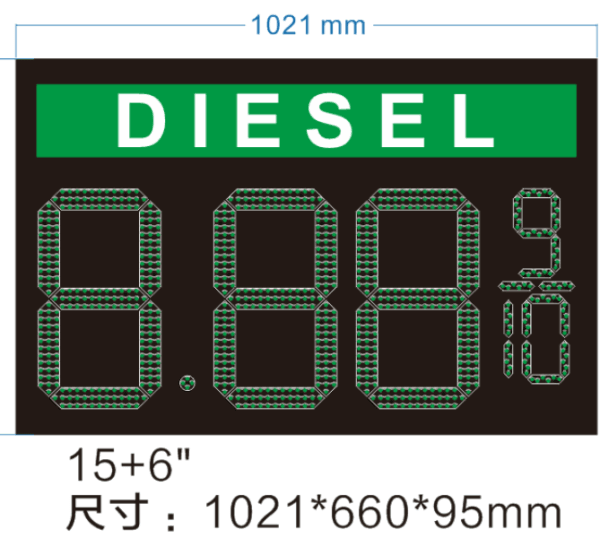

| Display Format: | 8.88, 8.888,8.888, 8.889/10, 88.88, 88.888 etc. |
| Remote Control Type: | RF remote control (Normal 6 buttons or LCD remote controller) |
| Master/slave: | Single sided or double sided, master/slaves available |
| Power Input: | 110/220V AC,50-60HZ |
Descriptions
| SERIES PARAMETERS | |
| Item | Technical Parameters |
| Color: | Red, Amber, Green, Blue, White |
| Digit Height: | 6”, 8”, 10”, 12”, 15”, 18”, 20”, 22”, 24”, 32”, 64”, 72” |
| Digit Design: | 7 segments modules are sealed with glue,reach IP67 waterproof grade,with dust shade that make leds work normally all the time. |
| Brightness Control: | Auto dimming by brightness sensor |
| Display Dimming: | Over 8 levels of automatic intensity adjustment |
| Viewing Angle: | Horizontal:60°-120°,Vertical: 60°-120° or customized |
| Service Access: | Front or rear open |
| Master/slave: | Single sided or double sided, master/slaves available |
| Cabinet Material: | Iron cabinet or aluminum alloy frame |
| Waterproof Level: | IP53 with aluminum alloy frame, IP65 with iron cabinet |
| Led Driving Mode: | Constant current |
| Power Input: | 110/220V AC,50-60HZ |
| PC Communication: | RS232/485;LAN(TCP/IP) with cables or wireless,customer can choose |
| Communication Distance: | Max.15 meters for RS232, 1200 meters for RS485 |
| Remote Control Type: | RF remote control (Normal 6 buttons or LCD remote controller) |
| Continuous Working Time: | Unlimited |
| Lifetime of Leds: | >100,000 hours |
| Installation Method: | Hanging,mounting or per custom design |
| Working Temperature: | -40℃~75℃ |
| Display Format: | 8.88, 8.888,8.888, 8.889/10, 88.88, 88.888 etc. |
