1. Brand Story
Stradivarius and her sister brand ZARA belong to the Spanish INDITEX group. It has 923 stores in 63 countries and regions around the world. One of the most characteristic symbols of the company is the treble clef which in the former logo
Creating fresh and creative feminine beauty is the soul of Stradivarius women swear. Keeping pace with fashion, Stradivarius Women swear is an on-trend apparel brand for dynamic, passionate and creative women. The avant-garde collections always provide trendy women with the latest styles, colors, patterns and accessories, making young women addicted and always among the fashion.
Even the design of the Stradivarius brand women’s clothing store combines the freshest creativity, unique materials and special decorative items, creating a refined and elegant shopping environment of the specialty store, full of urban fashion temperament, allowing customers to experience shopping fun.
2. Sign project
a) The client’s needs
Letter face should higher than the side stainless steel, lighting effect is full.
The lighting source is PCB (Printed circuit board), not normal LED modules.
The color temperature should be 4800 +-100 K
All wires must be hidden from view either from the front or the back.
| Size | Logo size | AdapterMEANWELL model | Input voltage | Output volatge | Input Amp | Output Amp | Watt | Total Amp | Total Watt |
| 2000 mm | 2003*506mm | CLG-150W-12V | 220V | 12V | 2A | 11A | 60W | 5A | 60W |
| 2500 mm | 2500*631mm | CLG-150W-12V | 220V | 12V | 2A | 11A | 94W | 7.83A | 94W |
| 3000 mm | 3000*757mm | CLG-150W-12V | 220V | 12V | 2A | 11A | 118W | 9.83A | 118W |
| 3500 mm | 3500*884mm | CLG-150W-12V (2 units) | 220V | 12V | 2A | 22A | 153W | 12.75A | 153W |
| 4000 mm | 4000*1029mm | CLG-150W-12V (2 units) | 220V | 12V | 2A | 22A | 201W | 16.75A | 201W |

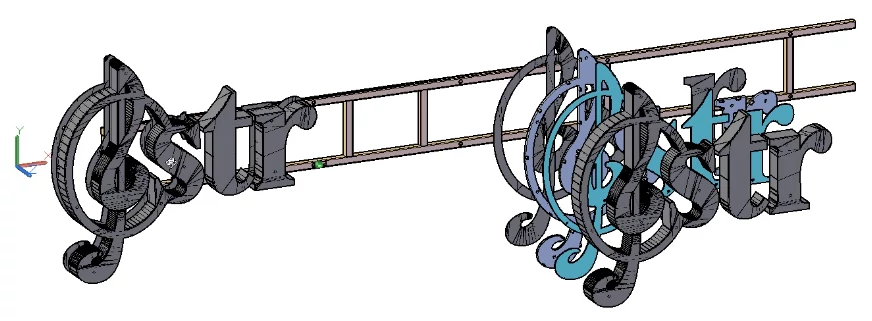

a) Sign design for client
Install all the letters on the brackets on the back, and the distance between the letters is strictly according to the design drawing. The wires are placed inside the bracket.

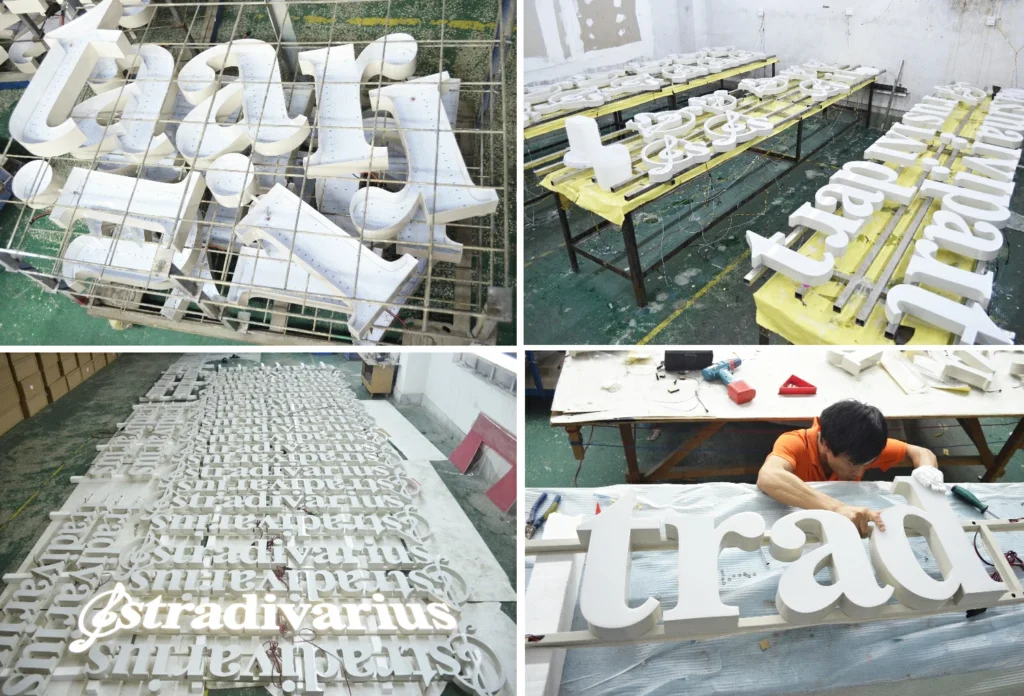

3. Sign Manufacturing
In order to meet the customer’s requirements for the color temperature of the luminous letters signs, we have conducted more than 10 tests with stable light source suppliers who have cooperated for a long time, and finally realized the fluctuation of the color temperature within the range of plus or minus 100K.
The front of the luminous letter signs is made of PU resin material, through which light can give people a soft effect on the eyes. Our workers can control the high quality production of this illuminated sign.
